Capacity 2000kg
Tandem Load Wheel
Travel Speed 5.5km
Fork Size 1150 x 685

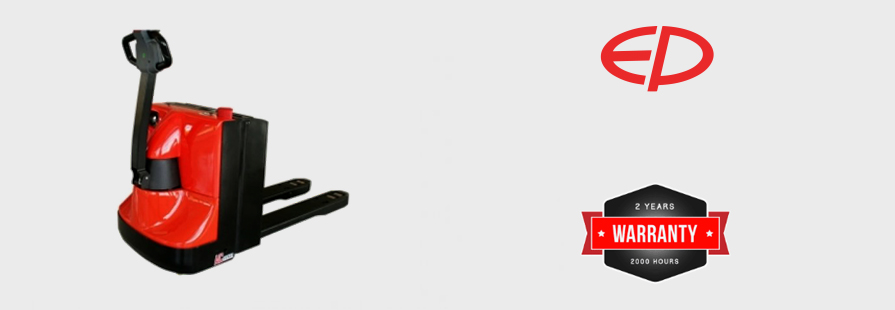

Latest AC technology - Electric Pallet Truck Forklift

Latest Zapi AC drive system delivers high performance and efficiency
Excellent acceleration for high throughput, more power, higher drive speed and higher productivity.

Travel speed maintained in every situation – especially on slopes.

Operability - Electric Pallet Truck Forklift

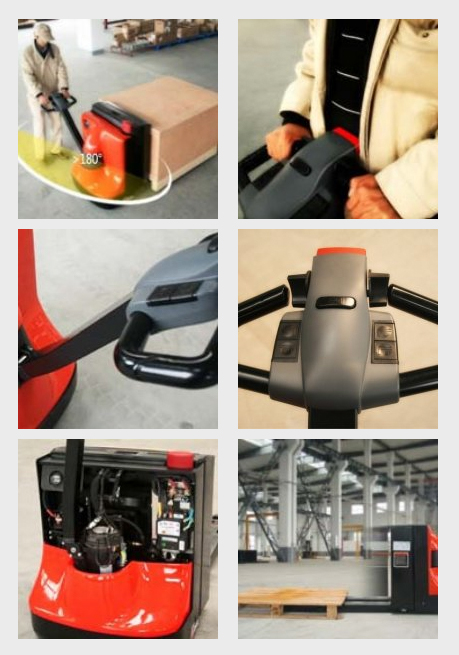

Spring caster optimises the stability of the truck forklift in any situation.
EP’s new control handle provides safe, smooth operation.
Lifting & lowering buttons are easily operated by fingertip of either hand.
Long arm steering handle rotates more than 180 degrees for excellent manoeuvrability.
Gas-assist springs provide effortless positioning and controlled return of handle.

Durability - Electric Pallet Truck Forklift

Heavy-duty MONARCH hydraulic motor assures positive alignment and maximum strength.
External cut-off switch plus mechanical stop saves energy and prevents motor overload.
The drive unit gearbox is designed for ease of maintenance, long life and quiet operation.
Tapered fork design provides industry-leading pallet entry and exit.
One-piece overall design provides added stability and strength when loading.
Special ball bearing steering system provides an easier, reliable steering operation.


Serviceability - Electric Pallet Truck Forklift

Easy access to key components through an easy-open top cover.
Casters can be released quickly and easily through a borehole in the chassis apron. Low-maintenance electric park brake.
Fused traction controller.
All operation switches in tiller head can be replaced as complete kits.
Bushes on all pivot points, and optional grease fittings on all lift linkage and steering points. Diagnostic handset.
Hinged battery cover can be easily opened with wide angle.
Apply connectors through out complete harness set, no welding connecting.
Hydraulic reservoir cap makes top-up easy.
Creep speed control allows the driver to operate the truck in tight areas with the handle nearly vertical for tight turns, saving nearly 30% of the required manoeuvring space.

Safety - Electric Pallet Truck Forklift

Slide-in design of key & power meter install saves space and guarantees component safety
Truck body goes all the way down to the floor, wheels turn within the confines of the chassis
Battery tray is locked by a spring tab which prevents battery movement
Emergency stop plug is mounted on the driver's side (right) of the truck body
Big contact size safety belly button on tiller head in event of contact with the operator.

SPECIFICATIONS
