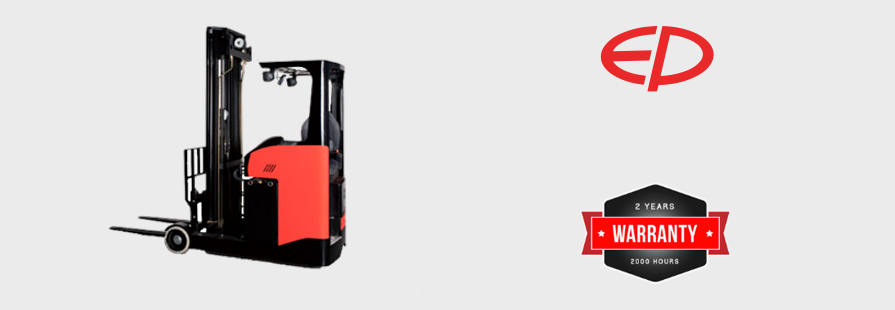

ELECTRIC SIT-DOWN REACH TRUCK 1200KG
- Load Capacity 1200kg
- 5.5m Triplex mast
- Integrated side shift
- Finger tip controls
ELECTRCI SIT-DOWN REACH TRUCK 1200KG
|
Model designation |
CQD12RF |
|
|
rated capacity |
t |
1.2 |
|
Height, mast lowered |
mm |
2065 |
|
Free lift (load backrest) |
mm |
0 |
|
Lift height |
mm |
3000 |
|
Height, mast extended |
mm |
4000 |
|
Aisle width for pallets 1000 × 1200 crossways |
mm |
2655 |
|
Aisle width for pallets 800 × 1200 lengthways |
mm |
2705 |
|
Turning radius |
mm |
1570 |
|
Drive motor rating S2 60 min |
kW |
4 |
|
Lift motor rating at S3 15% |
kW |
8.2 |
|
Battery voltage/nominal capacity K5 |
V/ Ah |
48V/320Ah
|
