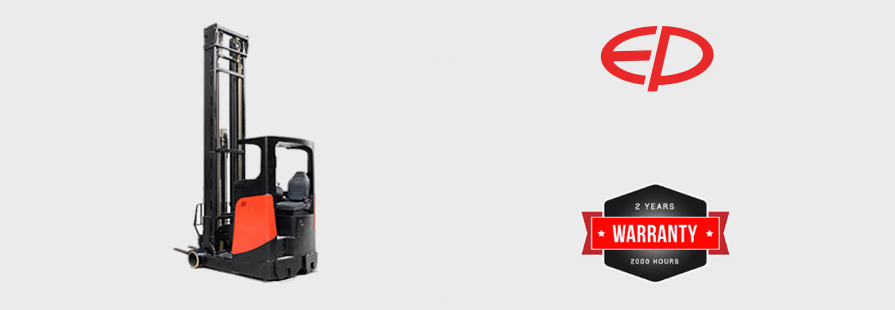

ELECTRIC SIT-DOWN REACH TRUCK 1600KG
- Load Capacity 1600kg
- 7m Triplex mast
- Integrated side shift
- Full AC power
ELECTRIC SIT-DOWN REACH TRUCK 1600KG
|
Model designation |
CQD16RV |
|
|
Rated capacity |
Q(t) |
1.6 |
|
Height,mast lowered |
h1(mm) |
2130 |
|
Free lift(load backrest) |
h2(mm) |
120 |
|
Lift height |
h3(mm) |
3000 |
|
Height,mast extended |
h4(mm) |
4065 |
|
Height of overhead guard(cabin) |
h6(mm) |
2210 |
|
Aisle width for pallets 1000*1200 crossways |
Ast(mm) |
2827 |
|
Aisle width for pallets 800*1200 lengthways |
Ast(mm) |
2891 |
|
Turning radius |
Wa(mm) |
1705 |
|
Drive motor rating S2 60min |
kW |
6.4 |
|
Lift motor rating at S3 15% |
kW |
11 |
|
Battery voltage/nomoinal capacity K5 |
V/Ah |
48/500 |
