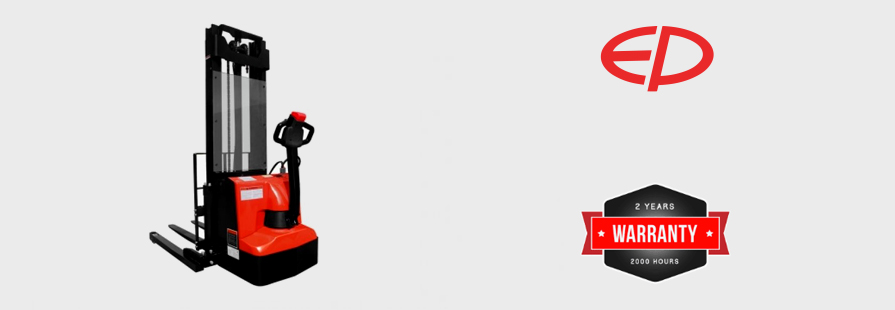

ELECTRIC STACKER FORKLIFT 1200KG
- Load capacity 1200kg
- Lift height 3m - 4.5m
- AC-Zapi controller
- Adjustable straddle
ELECTRIC STACKER FORKLIFT 1200KG
Food storage warehouses
Meat storage warehouses
Fruit and Vegetable storage areas
Dairy produce storage
Load Capacity 1200(kg)
Lift height 3m - 4.5m
Fork Spread 254/780(mm)
Length 1948(mm)
Speed 5.5-6km
Forks and fork leg width adjustable, for a variety of trays jobs
Longer joystick, greatly reducing the force required to operate the car, making manipulation more portable
Ideal compact size for your warehouse - this electric forklift stacker makes passing in narrow pathways easy!
1200kg capacity
Lift height 4500mm
Travel speed 5.5-6km
Electric brake
Maximum performance
High quality
Saves energy and manpower
Very attractive price
SPECIFICATIONS
| Attrribute | Units | Value |
| Load capacity | Q(kg) | 1200kg |
| Service weight (Incl. battery) | kg | 820 |
| Fork height, lowered | h13(mm) | 75 |
| Overall length | l1(mm) | 1948 |
| Overall width | b1/b2(mm) | 1120/1420 |
| Fork spread | b5(mm) | 254/780 |
| Aisle width, 1000×1200 pallet crossways | Ast(mm) | 2157 |
| Aisle width, 800×1200 pallet lengthways | Ast(mm) | 2197 |
| Outer turning radius | Wa(mm) | 1490 |
| Travel speed, laden / unladen | km/ h | 5.5/6 |
| Maximum gradeability, laden / unladen S2 5 min. | % | 8/16 |
| Battery voltage/ rated capacity (5h) | V/ Ah | 24/210 |
