This product won the Most Valuable Product at Pro Mat Chicago 2013 Trade Fair

At the Chicago logistic fair EP Electric order picker was awarded the best order picker. The order picker was rated strong, stable and value for money.

Design

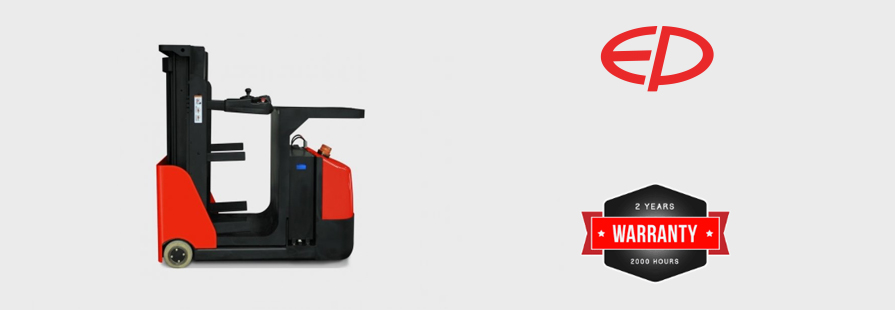

The CK-05 Electric Order Picker attractive design is driven by durability, utility and efficiency.

Drive motor

Maintenance-free AC drive system with quick response, accurate control, and excellent power efficiency

AC Controller

• Regenerative braking extends run times during operation by using motor resistance to slowly recharge the onboard batteries.
• High-efficiency signal processing controller improves motor response time and response accuracy enhancing operator control and maneuverability.
• EPS system greatly improves steering speed, and makes the truck more intuitive to drive for the operator.

Hydraulics and Mast

• One-way valve ensures loads stability during lift and lowering functions.  This reduces the chance for product damage and assures safe operation.
• High strength steel mast channels with oversized mast rollers provide high rigidity and low deflection and exceptional stability at height.
• Totally enclosed mast design is uniquely integrated into the vehicle to deliver strength and easy maintenance without compromising vehicle operation.
• Two-stage or three-stage masts are optional to tailor the vehicle to meet the specific needs and attributes of a given facility.
• Mechanical, hydro cylinder and electronic triple lift limit protection enhances safety while lifting or lowering in motion.

Brake

• Electrical motor brake provides regenerative braking during deceleration.
• EPS system enhances the vehicles parking brake strength.

Operability & Safety

• Motor, controls and chassis have been developed together to deliver exceptional vehicle maneuverability that drives overall efficiency, productivity, and safety.
• Compact ergonomic controls provides the operator are easy and intuitive while allowing for a large comfortable operating space.
• Safe start floor pedal ensures that the operator is in a proper driving position during transit.
• Rubber seat back cushion and available floor matting reduces strain on the operator.
• Retractable side handrails are equipped with safety switches to ensure that the handrails are in the closed position during operation.
• Slope alarm system alerts the truck operator when driving into or across areas with a grade which may present a safety hazard.
• Lowering alarm system warns workers at ground level to be clear of the vehicle during descent.
• Ground level hydraulic release prevents operators from being trapped at height due to a system failure.
• Deceleration switch activates when the mast is lifted up to 50 cm and every mast stage elevation reducing drive speed by half to ensure stable fluid operation.
• Rigid steel chassis protects the operator and is resistent to impact.

SPECIFICATIONS
